CICERO

Confocal imaging system from Crest Optics

A flexible, compact but full-fledged spinning-disk confocal imager, CICERO makes high-end fluorescence imaging accessible to every laboratory enabling a variety of applications.

  • Compatibility with all major inverted and upright microscopes
  • Utilization of full field of view in sCMOS cameras
  • Support for a laser light source or a LED light source
  • Movable disk for widefield imaging

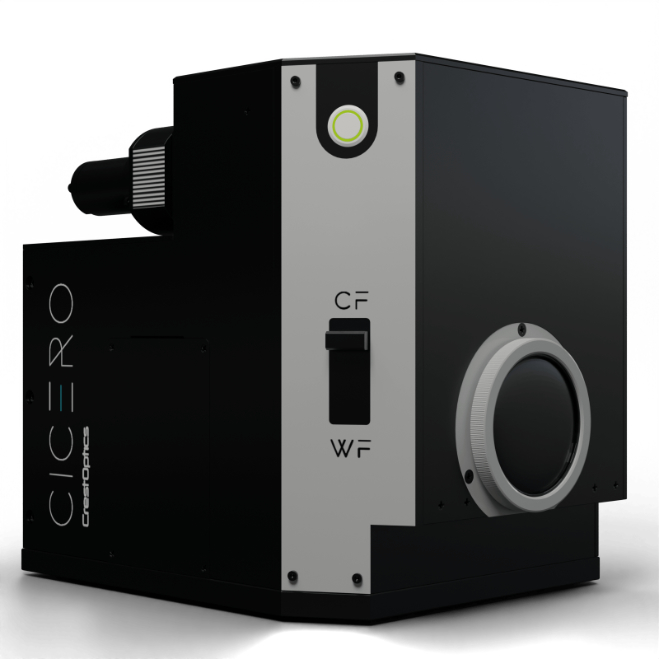

The CICERO Confocal Imager

CICERO is a complete widefield and spinning disk solution which can be integrated into any imaging setup, transforming it into a user-friendly and reliable confocal system for the life sciences.

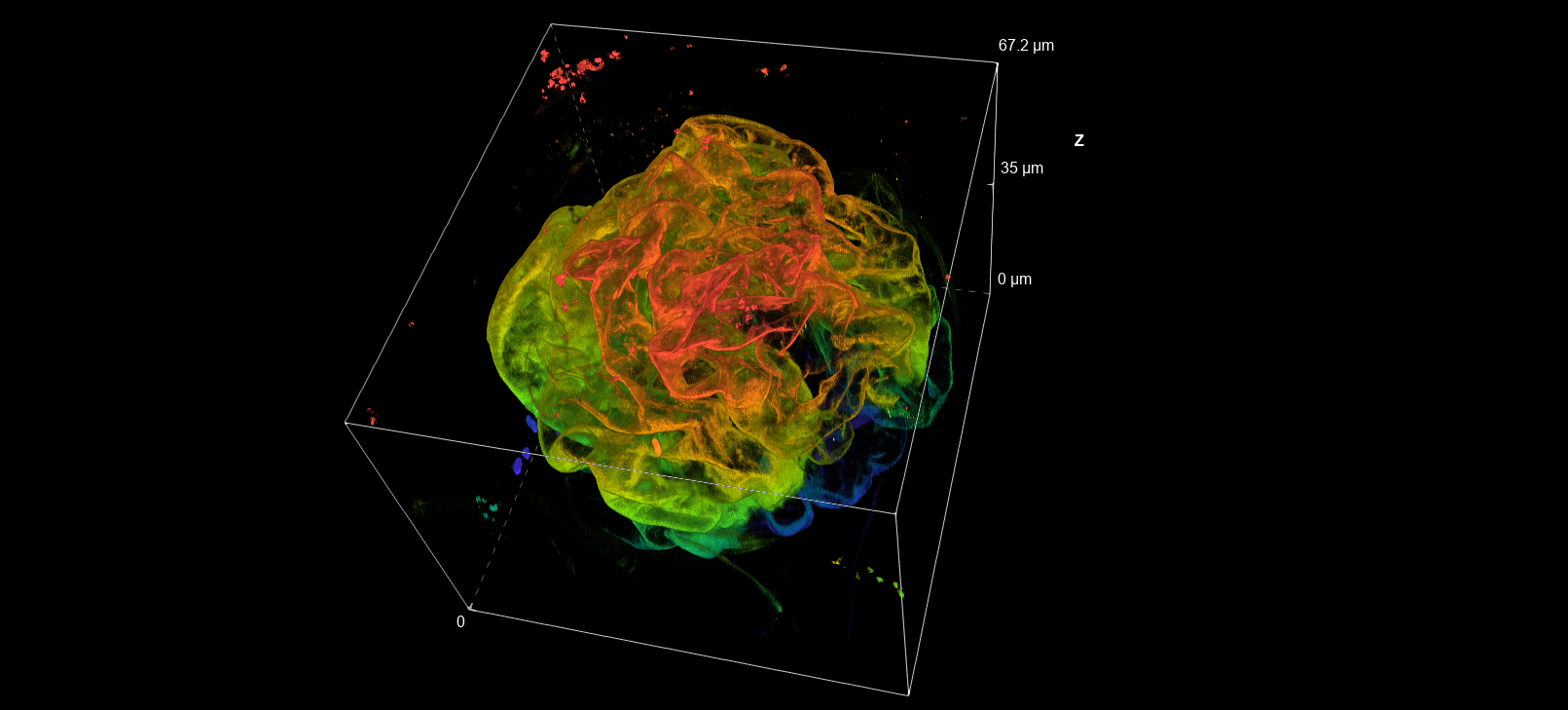

A CICERO spinning disk solution delivers fast image acquisition speed and sensitivity, easily enabling live cell imaging and large-scale 3‐D object imaging. CICERO’s large field of view allows capture of large samples in a single frame; it also minimizes the number of acquisitions in slide scans.

CICERO is compatible with both LED and laser as illumination source. Moreover, its wide spectral range enables a large variety of applications. These characterisics allow CICERO to address both entry-level and challenging applications.

Features

Feature Detail
High‐speed Disk Nipkow disk rotates at 15,000 revolutions per minute, providing for fast acquisitions.
Field of View Up to 22 mm
Bypass Mode Manual positioning: disk used for confocal imaging, disk bypassed for widefield imaging
Light Source Multichannel LED via 3 mm light guide
Multimode laser via SMA fiber
Spectral Range Excitation: 390–750 nm
Emission: 430–850 nm
Camera C‐mount camera
Resolution ( FWHM) Lateral: ~230 nm (100×/1.45NA objective)
Axial: ~600 nm (100×/1.45NA objective)
Software VisiView
Micro‐Manager
Volocity
Software Development Kit available on request
Configurations Inverted and upright microscopes
Weight 16.8 lbs; 7.65 kg
Dimensions (W×L×H) 166.20×234×228.60 mm
6.54×9.21×9 in
