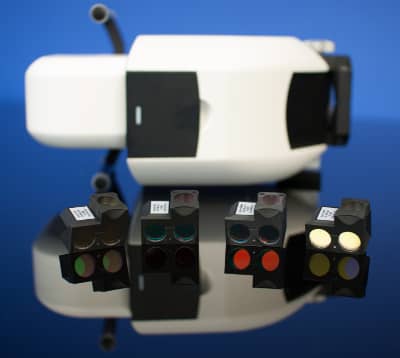

Aurox Interchangeable Optical Filter Cubes
A wide range of user‐exchangeable optical filter cubes are available for the Clarity confocal imager. The unit accepts up to four filters at a time and custom filters to meet your specific application needs are available.
The filter cubes are quickly and easily exchanged by hand, without tools, in under 15 seconds.
The following filter cubes are available for use in a Clarity microscopy system:
| Filter Cube | Product Number | Filter Specifications | Typical Fluorophores |
| Cy5‐LED | 0408 | 626–644 nm Ex, 659–701 nm Em | |
| DAPI‐LED | 0401 | 381–404 nm Ex, 417–477 nm Em | |
| DAPI | 0301 | 370–410 nm Ex, 430–475 nm Em | DAPI, Hoechst, AMCA |
| DsRed‐LED | 0403 | 543–566 nm Ex, 582–636 nm Em | |
| DsRed | 0303 | 554–568 nm Ex, 582–636 nm Em | RFP, DsRed (not dimer), TRITC |
| FITC | 0302 | 473–491 nm Ex, 503–548 nm Em | GFP, FITC, Alexa 488 |
| GFP‐LED | 0406 | 446–486 nm Ex, 503–548 nm Em | |
| PI | 0405 | 511–551 nm Ex, 582–636 nm Em | |
| YFP | 0407 | 488–512 nm Ex, 529–556 nm Em | |
| mCherry‐LED | 0404 | 568–589 nm Ex, 604–679 nm Em | |
| mCherry | 0320 | 572–594 nm Ex, 613–649 nm Em |
