VT-iSIM

Instantaneous super-resolution imaging system from VisiTech International

With VT-iSIM, the ground‐breaking high‐speed super resolution imaging system from VisiTech International, you can image at spatial and temporal resolutions never thought possible before.

With no requirement to use specific fluorophores and without any computation, the VT-iSIM produces super resolution images in real time at up to 1,000 frames per second.

This high temporal resolution is combined with a spatial resolution enhancement on all axes of up to 2× that of regular wide-field microscopy.

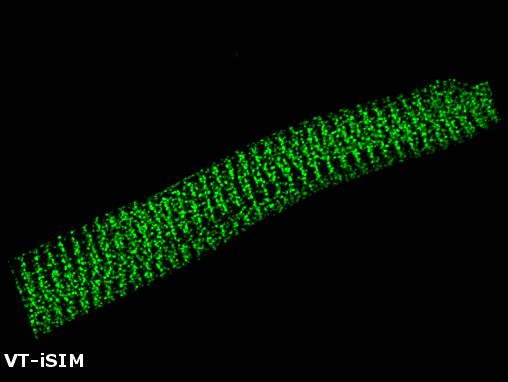

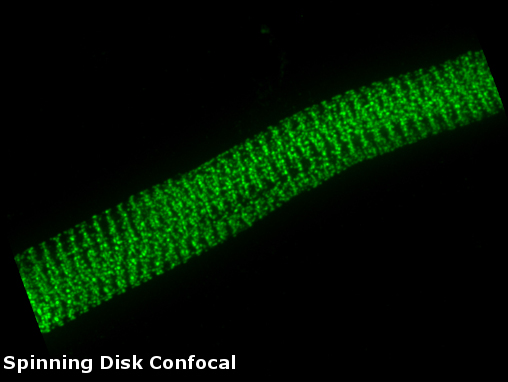

Image acquired with VT-iSIM Image acquired with Spinning Disk Confocal Imager
.

Images taken with VT-iSIM

iSIM
iSIM
iSIM

iSIM
iSIM
iSIM

iSIM
iSIM
iSIM

Monolayer of human fibroblasts infected with the parasite Toxoplasma gondii.

Human cells are not labeled.

Toxoplasma are expressing two FP tagged proteins.

EGFP-alpha-1-tubulin highlights the cortical microtubules, and an apical spot (the conoid) in both adult cells and in developing daughter cells (located inside the mother).

mCherryFP-APR1 highlights an apical ring, located immediately adjacent to the conoid, in both adult cells and in developing daughter cells.

Data courtesy of Dr. Ke Hu and Dr. Jacqueline Leung, Dept of Biology, Indiana University.

Microtubule growth from frog egg extract

Alexa-488 labelled porcine brain tubulin added to Xenopus laevis (frog) egg extract along with mCherry tagged EB1 protein to label the growing ends of microtubules.

Specimen from Akanksha Thawani, Sabine Petry lab, Princeton University

Specifications

Spatial Resolution: 125nm Laterally and 350nm Axially*
Temporal Resolution: Scan Speed up to 1000fps, full frame
Pin Holes: Selectable from 10-64um
Dichroic Changer: Automated 3-Position Dichroic Changer
Emission Filter Changer: Regular or High Speed 6-Position Emission Filter Changer
Excitation: Up to 6 SS lasers from visible range (405, 445, 488, 514, 532, 561, 642)
FRAP: Fully integrated FRAP add-on available
Bright Field by-pass: BF by-pass mode available for regular wide field imaging
Sync: Perfect camera & excitation sync comes as standard
Camera Specification: For accurate sampling camera must have pixel size less than 6.5 um
Microscope Specification: Nikon, Olympus, Zeiss, Leica. Connection via regular C-mount
Software: MetaMorph, Micro-Manager, VisiTech International’s VoxCell Scan acquisition software

* Spatial resolution measured using PSFj with Nikon 100x 1.45NA Lens
